Automatic machines "LINING MACHINEs" - insertion disk into the cap

Giuseppe Desirò Srl. has been known all over the world for its high quality blanking and disc loading systems for capsules for over 40 years. Our team designs and manufactures automatic machines for disc inserters of any shape for all types of closures. Many of our original machines are still operational and continue to produce caps all over the world.

TYPES OF CLOSURE: Plastic and metal screw and snap caps for closing bottles with flat gaskets.


GD11 - Lining Machine - PUT DISK - PHARMACEUTICAL SECTOR

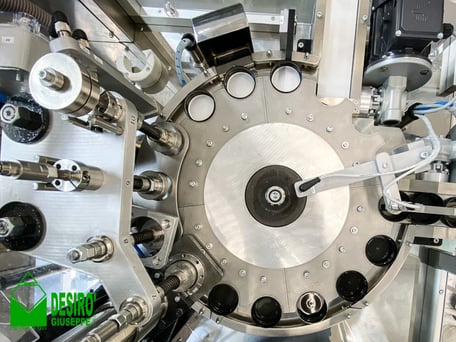

Lining Machine - GD11
Lining Machine - GD11

Put disc for inserting rubber discs into pharmaceutical capsules.



Insert disk to insert rubber disks into aluminum capsules with dot or binder to hold the disk in the capsule. Production up to 300 pcs / min.



GD12 - LINING Machine - PUT RUBBER DISK CUT FROM TAPE - PHARMACEUTICAL SECTOR

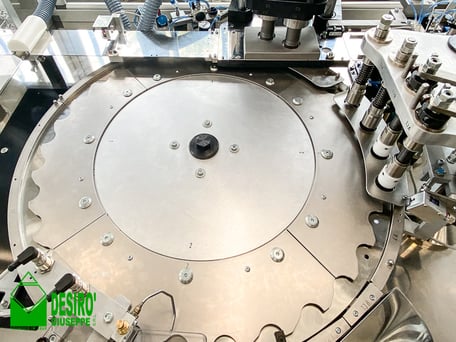

Lining Machine - GD12
Lining Machine - GD12

Put disk to insert rubber disks, cut in pairs from tape, into the capsules. Blanking systems with mechanical advancement of the belt at an adjustable pitch. Production up to 200 pcs / min.

Wide availability of options for the control of assembled components such as vision systems, color photocells, disk orientation systems based on their color, deionization systems, etc.





GD50R - LINING MACHINE - PUT HIGH SPEED ROTARY DISK - PHARMACEUTICAL SECTOR

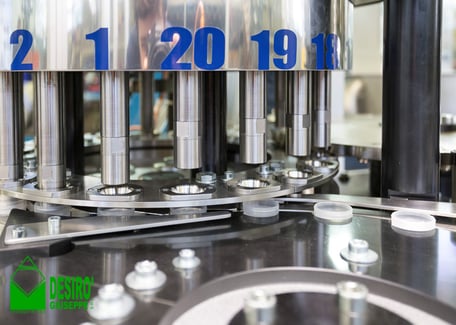

Lining Machine - GD50R
Lining Machine - GD50R

High speed rotary disc feeder to insert a pre-cut PE disc in a 28 diameter plastic capsule and subsequent coupling with an external capsule to form a child-proof closure.

Production up to 500/600 pieces per minute.



GD35 - LINING MACHINE - PUT RUBBER DISK CUT FROM TAPE - PHARMACEUTICAL SECTOR

Lining Machine - GD35
Lining Machine - GD35

Lining machine to insert rubber disks, cut from tape, into the aluminum capsules. Two-cavity blanking systems with mechanical advancement of the belt at an adjustable pitch. Production up to 200 pcs / min.



Wide availability of options for the control of assembled components such as vision systems, color photocells, disk orientation systems based on their color, deionization systems.
