Cap assembly machines
Giuseppe Desirò Srl. cap assembly machines can assemble multi-piece caps at speeds of up to 250 pcs/minute for single head machines, and faster output rates with multiple assembly heads.
TYPES OF CLOSURES:
GD has designed and constructed a variety of assembly machines to satisfy customer requests for specific types of products. Our consolidated experience allows us to offer a wide range of machines. The caps may be made up of two or more components, including sealing disks, sealing rings, pouring spouts, etc. Below are a few examples.
GD73 - assembly machine - ASSEMBLY OF TWO COMPONENTS AT THE SAME TIME
Machine to assemble a dosing mechanism on a plastic cap, with two assembly heads. Electronic coupling control of the doser on the cap, with automatic rejection of defective pieces.
A wide range of options to control assembled components, such as vision systems, color control photocells, disk orientation systems based on color, deionization systems, etc.
GD77/3 - assemblatrice erogatori e nebulizzatori fino a 5 componenti, attrezzature intercambiabili cambio formato
Macchina per montare Asta Nebulizzatrice di Spray disinfettanti per gola composta tre componenti con controlli su tutto il ciclo di assemblaggio e di funzionalità del componente assemblato.
Produzione fino a 60 pz/min.
GD73/3 - NEBULIZER ASSEMBLING MACHINE FOR ORAL CABLE OF THREE PIECES WITH SEAL TEST
Machine to assemble three pieces that make up a spray cap for an oral spray, to be fitted onto a bottle, with production controls along the entire assembly cycle and function testing on the assembled piece. Also equipped with a sealing test on the foldable shaft and dispenser flow control, with electronic sensors that can be calibrated directly through the operator panel.
Quality and function control along the entire assembly cycle.
Intermittent assembly machines from 2 to 5 components

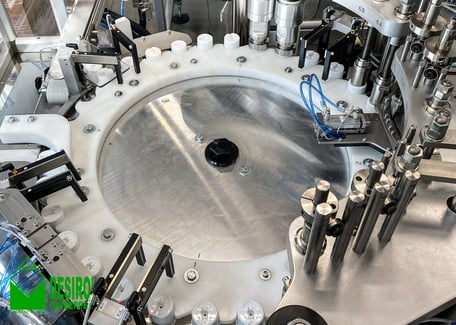

In this type of machine, component assembly is carried out during the index table pause times. These machines are easy to access and versatile in their adaptability to various shapes of components.
Machine speed: can reach up to 200pcs/min on a single line, but higher output speeds can be reached by working simultaneously on multiple lines.
GD33/4 - INTERMITTENT ASSEMBLER OF FOUR COMPONENTS
Machine to assemble four plastic components to create a cap for food liquids, with a check valve and production control for every assembly stage. Machine output is 120 pieces per minute.
